Food Grade Paddle Mixer 30 ft³ Capacity
Food Grade Paddle Mixer 30 ft³ Capacity
MIXSYS Mixer Model A-MXKH1200C5KS4Y1 N for BATCH production process with MIX Paddle Mixing Tool rotor shaft design / EXTRA-REINFORCED SERVICE
Request a quote
Summary
IN STOCK NOW
The Food Grade Paddle Mixer 30 ft³ Capacity, is an extra-reinforced batch paddle mixer designed for consistent, high-performance blending in industrial production processes. With a maximum usable capacity of 30 ft³ (850 liters), it is built to efficiently mix dry and semi-moist materials while maintaining uniform product quality.
Benefits
Constructed with AISI 304 stainless steel product-contact components and equipped with a PALAMIX paddle rotor shaft design, the C1209 delivers reliable operation, controlled discharge, and long-term durability in demanding processing environments. ATEX certification for Zone 20 internal and Zone 22 external use ensures safe performance in regulated production settings.
Features
Design Specifications
MIXSYS Mixer Model A-MXKH1200C5KS4Y1 N for BATCH production process with MIX Paddle Mixing Tool rotor shaft design / EXTRA-REINFORCED SERVICE, with the following specifications:
• Maximum usable loading capacity 30 ft 3 (850 liters)
• 1 N° DN300 circular loading inlet with flange;
• 1 N° DN200 circular loading inlet with flange;
• 1 N° venting door DN200 with flange;
- 1 N° Bombay discharge door reconstructing the circularity of the mixing chamber, with a 60° opening along the entire length of the chamber, complete with two (2) pneumatic cylinders equipped with bistable solenoid valves.
• 1 N° inspection door complete with accident prevention block.
• Cylindrical Mixer wall
• Self-supporting lateral heads with lifting eyebolts
• Material of Construction:
o Mixer wall: AISI 304
o Full Solid End Plates: AISI 304
o Solid rotor shaft: AISI 304
o Paddle Mixing tools: AISI 304
• Mixing tools: PALAMIX and oversized scrapers welded to the rotor shaft
• Welding quality control by testing liquids penetrating the rotor and mixing tools (suitable test to identify microporosity)
• Continuous external welds
• Stainless steel external bolts on the mixing chamber, the remaining in galvanized carbon steel
• Main Drive Motor with the following characteristics:
o Compact orthogonal gear flanged to the mixer; NORD brand
o Non-food Gear oil
o Three-phase Seipee Brand asynchronous electric motor 50 HP (37kW) - 480V - 60Hz - 4 poles
o Forced-vent fan motor (motor suitable for installation under inverter; inverter supplied by others)
• 2 N° Air flowing rotor shaft seals with the following characteristics:
o Anti-wear bushing to protect the rotor shaft in "Diamond Like Carbon" DLC
o Food Grade bronze diffuser
o Seal body in AISI 304
o Packing Gland divided into 2 halves in AISI 304
• 2 N° Side choppers predisposition with blank flange. Chopper(s) can be provided at an additional cost.
• 2 N° Liquid Nozzle Predispositions closed with blank flanges. Nozzle Predispositions and nozzles can be provided at an additional cost
• 1 N° Predisposition closed with blank flange for OPTIONAL pneumatic product sampler for retrieving samples while in process
• Auxiliaries: 24V DC
• Surface finish
o Internal parts in AISI = "V95" satin finish - grain 220 - finishing degree RA 0.3 - 0.4 micron.
o External parts in AISI = micro-peening with "V84" glass microspheres with final roughness 2.5-4 microns.
o External parts in carbon steel = mechanical cleaning V01 / RAL 9006 epoxy primer
o Commercial components painted with standard supplier paint
• ATEX certification: External zone 22 / Internal zone 20, including:
o Machine earthed and equipotential.
o Reels welded to the rotor shaft.
o ATEX reducer zone 22
o ATEX zone 22 rotor motor
o Rotor shaft seal temperature probes suitable for use in Zone 22
o Cylinders / solenoid valves / exhaust mouth limit switches suitable for use in Zone 22
o Door safety lock limit switch suitable for use in Zone 22
o Certification of internal parts and external parts of the mixer.
Images

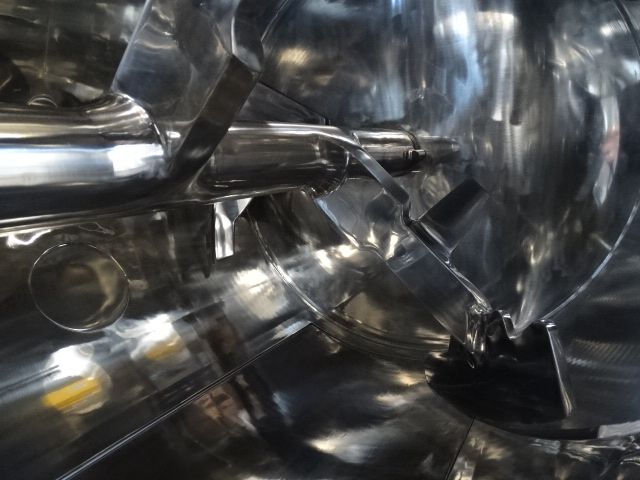

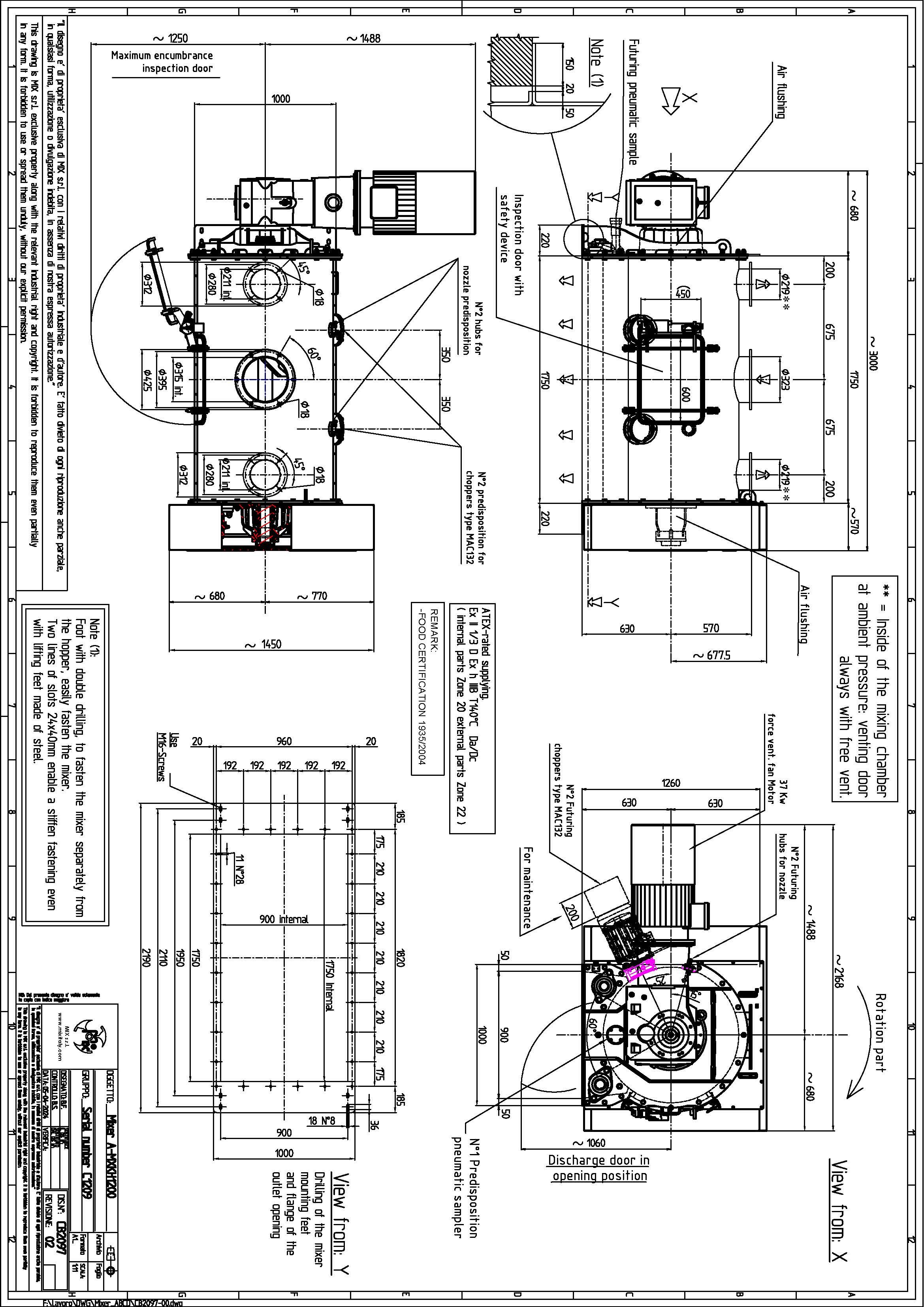

Mixer C1209
